Molybdenum CNC Wire Cut EDM is also known as: Wire cutting, Wire electrical discharge machining. WEDM uses a metallic wire to cut or shape a workpiece, often a conductive material, with a thin molybdenum wire that follows a precisely programmed path. SAMMLITE is the world leader in wire EDM, giving you faster processing times and superior surface finishes for even the most complex part geometries.

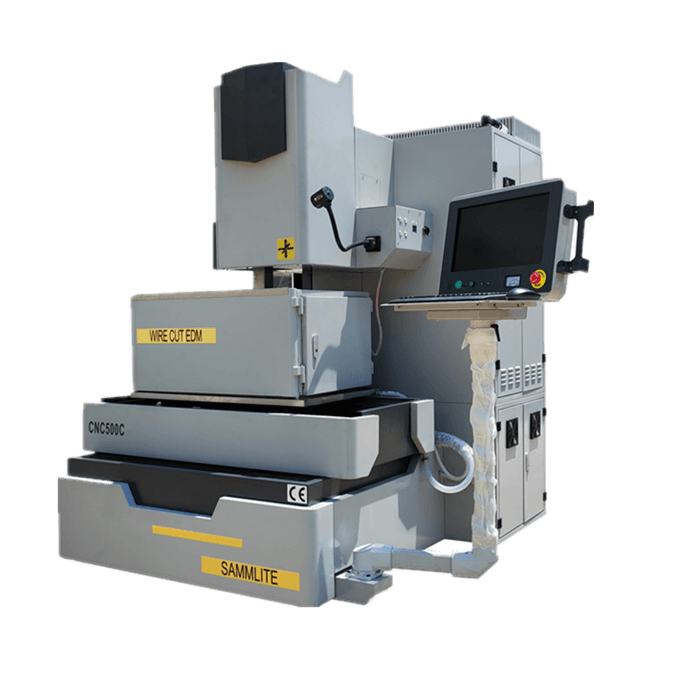

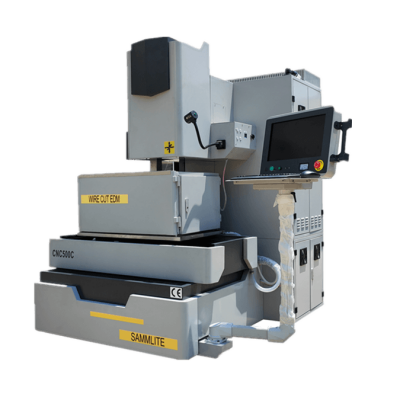

5 Axis CNC Wire Cut EDM Machine

Extreme High Accuracy, Excellent Finishing, 5 Axis NC Control, Space Saving

5 Axis Wire cut EDM Machine
MODEL X Travel Y Travel Z Travel TAPER Accuracy
CNC500C
500mm
350mm
300mm
±10°
±0.003mm

CNC WIRE CUT EDM W-SERIE

Versatility, Low operating cost, Excellent Accuracy

CNC320W / CNC400W

MODEL X Travel Y Travel Z Travel TAPER Accuracy
CNC320W
400mm
320mm
300mm
±12°
0.008mm
CNC400W
500mm
400mm
300mm
±12°
0.008mm

CNC500W / CNC630W

MODEL X Travel Y Travel Z Travel TAPER Accuracy
CNC500W
630mm
500mm
300mm
±12°
0.008mm
CNC630W
800mm
630mm
300mm
±12°
0.008mm

CNC800W / CNC1000W

MODEL X Travel Y Travel Z Travel TAPER Accuracy
CNC800W
1000mm
8000mm
500mm
±12°
0.008mm
CNC1000W
1200mm
1000mm
500mm
±12°
0.008mm

CNC WIRE CUT EDM ECO-SERIES

Compact structure, Fastest speed, Stability system, Servo Motor

CNC320C / CNC400C

MODEL X Travel Y Travel Z Travel TAPER Accuracy
CNC320C
400mm
320mm
250mm
±3/±6
0.01mm
CNC400C
500mm
400mm
250mm
±3/±6
0.01mm

WIRE CUT EDM MACHINE (STEP MOTOR) SERIES

Step-motor, Compact structure, High Speed, Eco Solution

CNC320CS / CNC400CS

MODEL X Travel Y Travel Z Travel TAPER Accuracy
CNC320CS
400mm
320mm
250mm
±3/±6
0.01mm
CNC400CS
500mm
400mm
250mm
±3/±6
0.01mm
MODEL X Travel Y Travel Z Travel TAPER Accuracy
CNC500CS
630mm
500mm
250mm
±3/±6
0.01mm

Wire Cut EDM

New CNC Wire Cut EDM is both a CNC machine tool and a special processing machine tool. It is different from traditional machine tools in the following parts: CNC device and servo system, not relying on mechanical energy to cut the workpiece through the tool, but in the form of electrical and thermal energy. WEDM processing is a relatively mature process in special processing. Sammlite Manufacture wire cut EDM has below types: According to the control system classification, there are three kinds of position control, linear control, and continuous control. According to the servo system, there are open loop, semi-closed loop, and closed loop control systems.

Traditional cutting processing methods mainly rely on mechanical energy to remove metallic or non-metallic materials. With the development of industrial production and science and technology, a variety of special processing methods using other forms of energy have emerged, mainly referring to methods that directly use electrical energy, chemical energy, sound energy, and light energy for processing. Here, the application of energy forms other than mechanical energy is a significant sign that special processing is different from traditional processing.

The new form of energy directly acts on the material, resulting in many characteristics of processing. For example, the hardness of the tool used for processing does not have to be greater than the hardness of the material to be processed, which makes the processing of high-hardness, high-strength, and high-toughness materials easier; and For example, in the machining process, there is no significant mechanical cutting force between the tool and the workpiece, which makes electrical discharge possible. It is these characteristics that have promoted the development of special processing methods, which have been widely used in aerospace, electronics, power, electrical appliances, instruments, machinery and other industries. Step motor molybdenum wire cut EDM machine for sale price is cheap. New wire EDM machine cost for electric wire metal cutting machine using wire electro eriosion method, it is also a multi wire electrical discharge machining.
