Wire Cut EDM

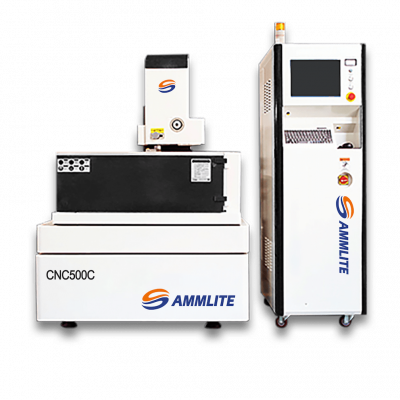

CNC500C
Compact structure, fastest speed, user-friendly system
KEY FEATURES:
C Series is an economical model with compact machine structure design
Panasonic / Mitsubishi servo-motor
X/Y axis Hi-Win linear guide and ball screw
Accuracy<0.01mm / Ra<1.0um
Technical Specification
Cost-effective C series for compact design molybdenum wire cut edm, this series is a product of Sammlite manufacturere! The XY axis adopts the Japanese Panasonic servo motor and is controlled by the Panasonic encoder to ensure the mechanical accuracy. The XY guide screw adopts Taiwan Hi-Win or PMI to ensure the long-term accuracy of the equipment. The core electrical system adopts Japan’s Omron to ensure the long-term stability of the equipment. Use automatic oil injection system to ensure long-term maintenance of equipment and convenient maintenance
| Specification | CNC500C | |
|---|---|---|
|
Table Size |
900×600 mm |
|
|
X/Y Axis Travel |
630×500 mm |
|
|
Max Cutting Thickness |
250 mm |
|
|
Max Workpiece Weight |
400 KG |
|
|
Driven Motor |
Panasonic / Mitsubishi Servo Motor |
|
|
Cutting Speed |
180 mm²/min |
|
|
Surface Roughness |
1st Cut Ra<2.3um, 2nd Ra<1.6um, 3rd Ra≤1um |
|
|
Molybdenum Wire Diameter |
0.12-0.20 mm |
|
|
Taper （U/V Axis) |
±3°/±6° 70mm |
|
|
Machine Dimension |
2000*1350*2000 mm |
|
|
Machine Weight |
2200 KG |
|
Applications
Material | DC53 |
Thickness | 30mm |
Cuts | 3 cuts |
Hours | 6 hours |
Ra | 0.95 um |
Material | CR12 |
Thickness | 210mm |
Cuts | 3 cuts |
Hours | 2 hours |
Ra | 1.5 um |
Material | H13 |
Thickness | 42mm |
Cuts | 2 cuts |
Hours | 3 hours |
Accuracy | 0.01mm |
Material | CR12 |
Thickness | 40mm |
Cuts | 3 cuts |
Hours | 40 min |
Accuracy | 0.008mm |
Videos
Accuracy Measure
Wire Cutting Demo
Autocad+Autocut Software
