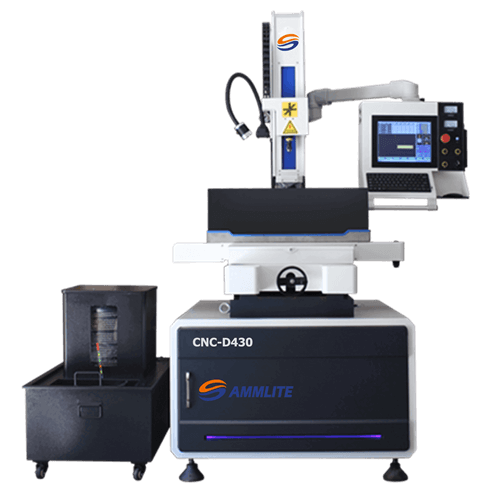

CNC-D430 Drilling EDM

Drill EDM

CNC-D430 / D435 / D640

High Speed, High Accuracy, Intellent Software

KEY FEATURES:

  • Touch screen Win7 operating system, fast running speed, can process massive data at the same time
  • Rich data interfaces, the system can directly load and edit data through USB, Internet, so as to generate the most reasonable processing route.
  • Support X/Y/Z/W/C five-axis CNC machining, suitable for flat and arc surface drilling, and uneven workpieces with steps
  • Support dwg & dxf format files and comes with an expert process library, users only need to input the workpiece material, electrode diameter, processing requirements and other conditions, the processing parameters are automatically called, and the hole processing parameters can also be manually adjusted.
  •  Automatic centering, automatic edge finding, and automatic finding of the surface of the workpiece.
  • Precise depth control, automatic detection of electrode loss, and manual setting of electrode loss.
  • Automatic penetration detection, and depth coordinates can also be set manually.
  •  X/Y axis have closed loop function, which can realize high-precision positioning.
  • Ball screw & Linear Guide for x/y/z three-axis
  • Manual and automatic integrated processing mode, automatically lock after x/y axis is positioned, and can be unlocked manually.

Technical Specification

Drill EDM uses copper tube as electrodes, also known as the perforator electrode rod, electrode tube. According to the material, it is divided into brass and red copper. According to the structure, it is divided into single hole and multi hole. Used for starting hole of electric discharge wire cutting EDM. Processed threading holes, chemical fiber spinnerets, spinneret holes of spinnerets, filter plates, group holes of sieve plates, engine blades, cooling holes of cylinders, oil and gas circuits of hydraulic and pneumatic valve bodies. It is suitable for processing various conductive materials such as stainless steel, hardened steel, hard alloy, copper, aluminum, etc. The processing aperture is ∮0.3-∮3.0mm, and the maximum depth-to-diameter ratio can reach more than 200:1. The maximum processing speed can reach 20- per minute. 60mm. Directly penetrate from the inclined plane and curved surface and directly use tap water as the working fluid. The X, Y, and Z axis of the workbench are equipped with digital display devices. It has the function of automatic electrode trimming. The spindle can lift fast up and down. It has the function of adjusting the processing voltage. With side positioning function.

Specification CNC-D430 CNC-D435 CNC-D640
Table Size
440×320 mm
500×380 mm
700×450 mm
X/Y Axis Travel
400×300 mm
450×350 mm
600×400 mm
Z Axis Travel
380 mm
380 mm
380 mm
Max Workpiece Weight
300 KG
360 KG
380 KG
2-nd Axis Travel
280 mm
280 mm
280 mm
Electrode Diameter
0.3-3.0mm
0.3-3.0mm
0.3-3.0mm
Max Current
30 Amp
30 Amp
30 Amp
Max Workpiece Height
300 mm
300 mm
300 mm
System
Win7 Touch Screen
Win7 Touch Screen
Win7 Touch Screen
Machine Weight
750 KG
860 KG
960 KG

Applications

hole poper 0.1mm by drilling
drill edm manufacturer
drill edm factory
Drill EDM small holes
