Die Sinking EDM

ZNC650 / ZNC700

High Speed, User-Friendly System, Economical Solution

KEY FEATURES:

  • 15’’LCD Screen controller
  • Pre-install Tungsten Hard Metal Control Circuit, 30% less electrode loss
  • Adopting fuzzy control theory, carbon deposition can be checked by itself
  • On the time of unstable discharge, the machine have auto alert system
  • From rough processing to fine processing can be finished at one time.
  • Expert data system, simple operating for beginners
  • Oil level control, process device will be stopped automatically
  • Accelerograph control, if the display is OFF, devices will be stopped automatically
  • If temperature of working fluid is too high, the process will be cut off automatically
  • Temperature induction. fire alert and cut off the power supply at the same time
  • Machine is designed by computer analysis with good structure and high precision
  • Good precision screw and DC/AC servo motor are used in Z axis.
  • High precision bearing and high precision ball screw are used in X,Y axis
  • Rails are “V”shape, can move lightly under heavy load

Technical Specification

Specification ZNC650 ZNC700
Table Size
1000×600 mm
1200×650 mm
X/Y Axis Travel
650×550 mm
700×600 mm
Z Axis Travel
300 mm
300 mm
Max Workpiece Weight
2000 KG
2000 KG
Driven Motor
SANYO DC Motor
Electrode Weight
150KG
150KG
Surface Roughness
Ra<0.6um
Ra<0.6um
Distance From Worktable to Electrode Plate
850mm
950mm
Electrode Wear Ratio
<0.2%
<0.2%
Position Accuracy
0.02mm
0.02mm
Machine Weight
3000 KG
3500 KG

Applications

zip by znc edm machine

Material

 S136

Electrode

Copper

Ra

2.3um

Model

ZNC450

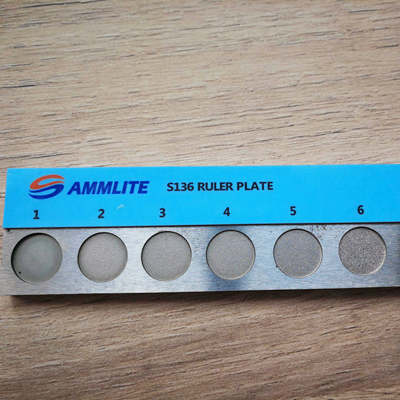

sample plate by edm machine

Material

 S136

Electrode

Copper

Ra

0.6um

Area

10×10mm

glasses by die sinking edm

Material

 S136

Electrode

Copper

Ra

1.5um

Area

60×40mm

Die Sinker Case3

Material

 S136

Electrode

Graphite

Ra

0.8um

Model

CNC400
