CNC1060 Column Type EDM

Column (Ram) Type EDM Machine

CNC850 / CNC1060

High Speed, High loading Capacity, Excellent Rigidity Design

KEY FEATURES:

  • Adaptive sparking control
  • High speed jump & jump control
  • It adopts a ram type structure
  • The worktable is fixed and the XY direction move through the ram
  • Convenient to the loading and unloading of workpiece
  • CNC Sodick supported system & Touching screen
  • Work piece detection & Spark gap detection
  • X/Y/Z Panasonic AC motors
  • Marble material work table
  • G-Code processing & Auto expert database

Technical Specification

Specification CNC850 CNC1060
Table Size
1150×600 mm
1280×800 mm
X/Y Axis Travel
850×500 mm
1000×600 mm
Z Axis Travel
400 mm
400 mm
Max Workpiece Weight
3000 KG
4000 KG
Driven Motor
Panasonic / Mitsubishi Servo Motor
Electrode Weight
180KG
200KG
Surface Roughness
Ra<0.2um
Ra<0.2um
Distance From Worktable to Electrode Plate
800mm
950mm
Electrode Wear Ratio
<0.1%
<0.1%
Position Accuracy
0.015mm
0.015mm
Machine Weight
4000 KG
4300 KG

Applications

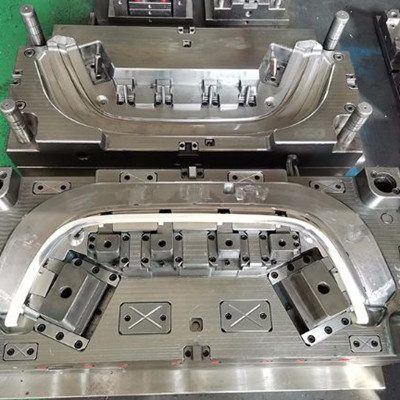

car mold by column type edm

Case

 Car Bumper

Material

P20

Electrode

Copper

Model

CNC850

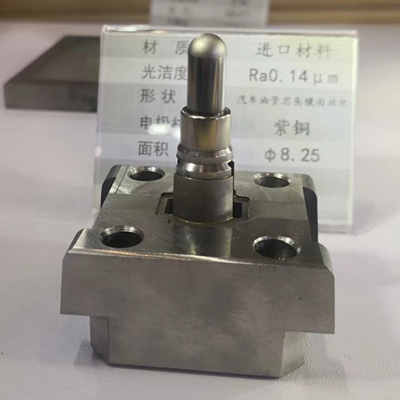

mold by electrical discharge machine

Material

 S136

Electrode

Copper

Ra

0.14um

Area

8.25mm²

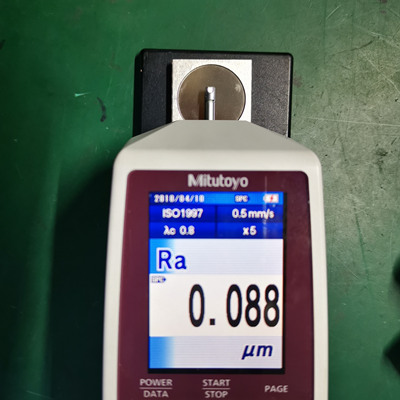

fine finishing

Material

 S136

Electrode

Copper

Ra

0.08um

Area

25×25mm

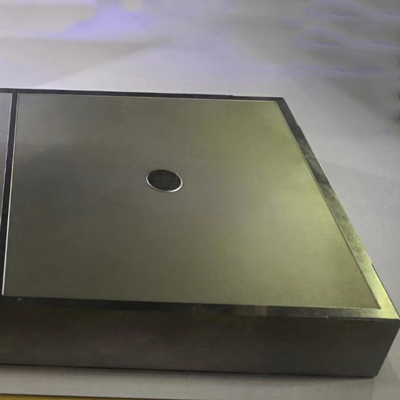

Die Sinker Case3

Material

 S136

Electrode

Graphite

Ra

0.8um

Model

CNC400

Videos

EDM Sparking Demo

Column Type EDM With Dual Spindles
